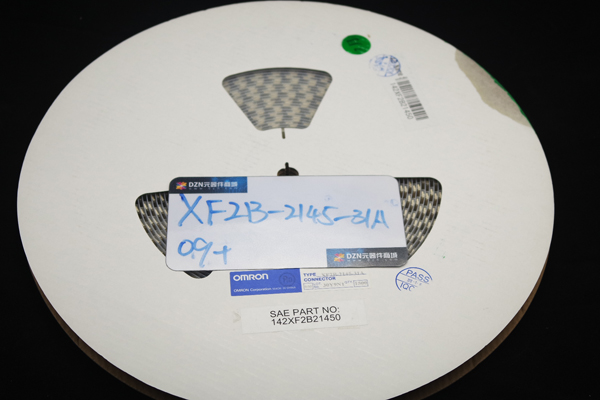

XF2B-2145-31A

• Wide molding wall on the rear bottom of the connector

allows greater freedom in board design

• Dual contact reduces the number of parts

• Gold plated with an applicable FPC thickness of 0.2 mm

• Halogen Free (See note)

Note: OMRON uses the following standard to determine halogenfree

construction: 900 ppm max. for Br, 900 ppm max. for Cl,

and 1,500 ppm max. for Br+Cl.

• RoHS Compliant

•宽成型壁上的连接器的后底
允许板设计有更大的自由度
•双接触减少零件的数量
•镀金与适用FPC厚度为0.2mm
•无卤（见注）
注：OMRON使用下列标准确定无卤
建筑：900 ppm的最大值。对于溴，900 ppm的最大为氯，
和1500ppm的最大。对于溴氯+。
•符合RoHS

Pins Model A B C D

17 XF2B-1745-31A 4.2 4.8 5.5 7.0

21 XF2B-2145-31A 5.4 6.0 6.7 8.2

23 XF2B-2345-31A 6.0 6.6 7.3 8.8

25 XF2B-2545-31A 6.6 7.2 7.9 9.4

27 XF2B-2745-31A 7.2 7.8 8.5 10.0

31 XF2B-3145-31A 8.4 9.0 9.7 11.2

33 XF2B-3345-31A 9.0 9.6 10.3 11.8

35 XF2B-3545-31A 9.6 10.2 10.9 12.4

39 XF2B-3945-31A 10.8 11.4 12.1 13.6

41 XF2B-4145-31A 11.4 12.0 12.7 14.2

45 XF2B-4545-31A 12.6 13.2 13.9 15.4

51 XF2B-5145-31A 14.4 15.0 15.7 17.2

61 (See note) XF2B-6155-31A 17.4 18.0 18.7 20.2
